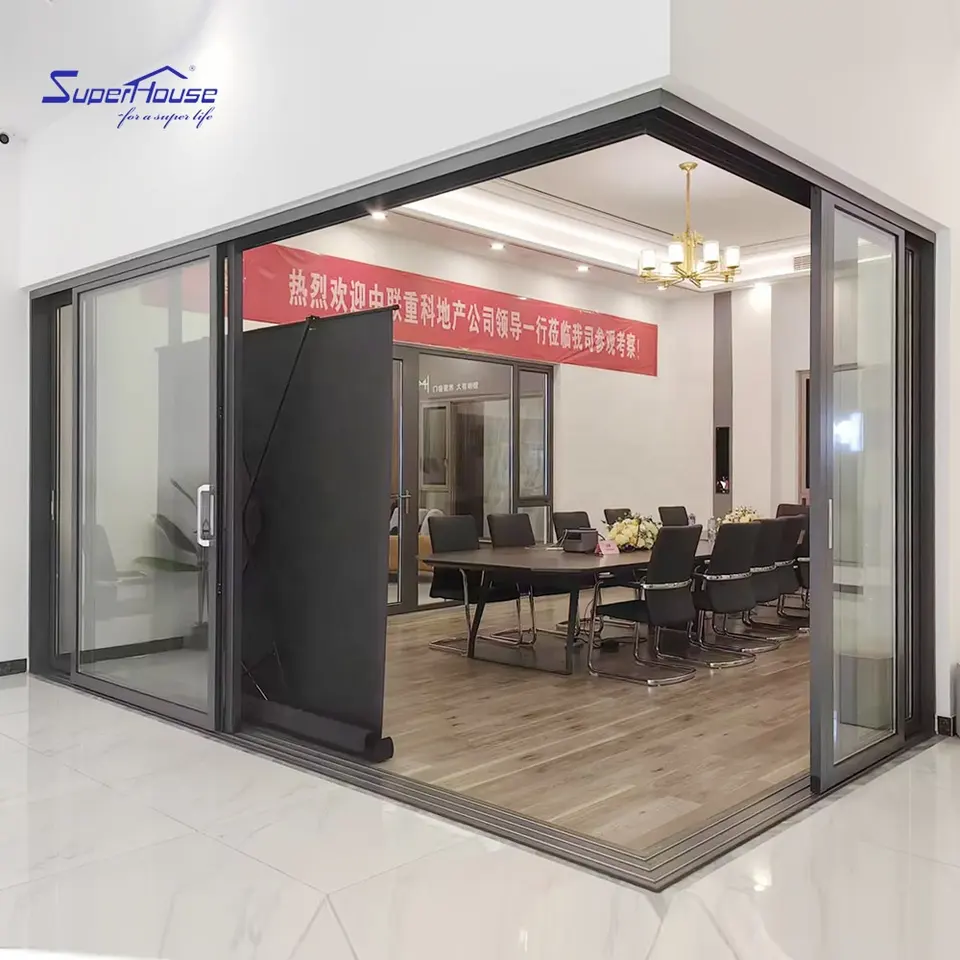

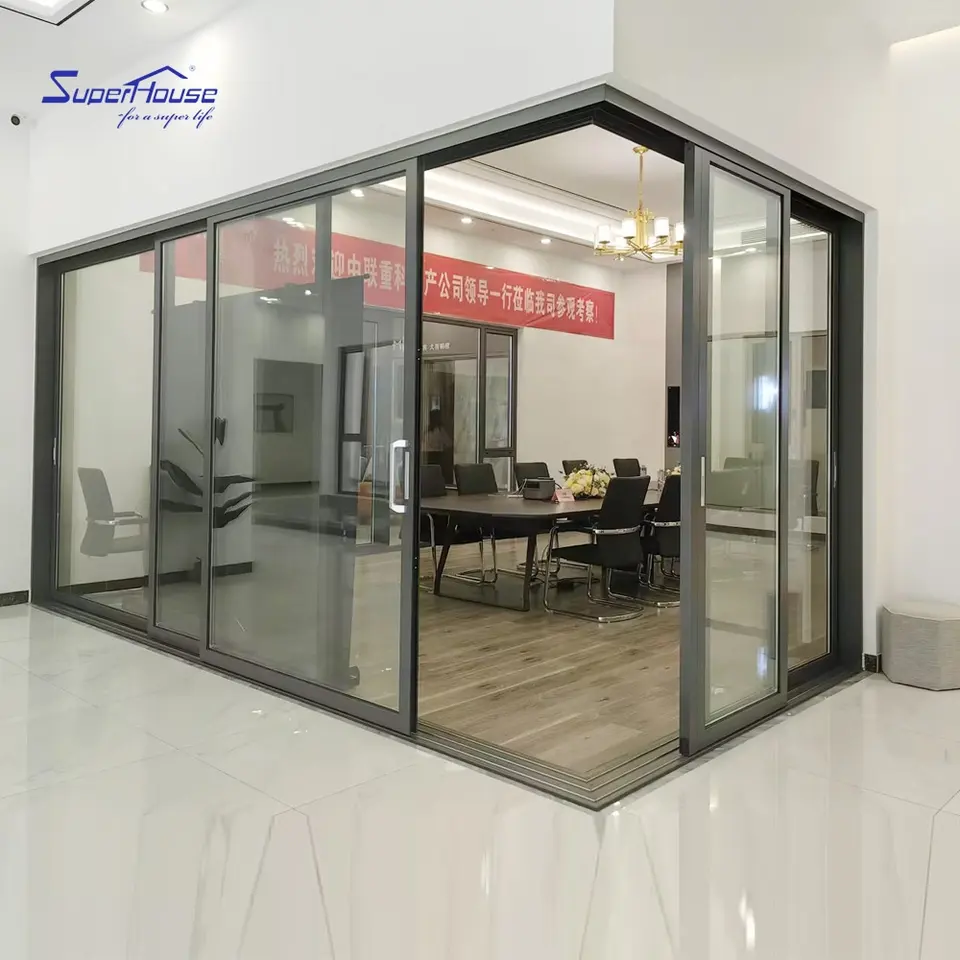

Canada USA Meeting Room Thermal Insulated Double Glass Door Aluminium Lift Sliding Door Chamber Door
Canada USA Meeting Room Thermal Insulated Double Glass Door Aluminium Lift Sliding Door Chamber Door
Canada USA Meeting Room Thermal Insulated Double Glass Door Aluminium Lift Sliding Door Chamber Door
Canada USA Meeting Room Thermal Insulated Double Glass Door Aluminium Lift Sliding Door Chamber Door
Canada USA Meeting Room Thermal Insulated Double Glass Door Aluminium Lift Sliding Door Chamber Door
1 / 5
Canada USA Meeting Room Thermal Insulated Double Glass Door Aluminium Lift Sliding Door Chamber Door
Canada USA Meeting Room Thermal Insulated Double Glass Door Aluminium Lift Sliding Door Chamber Door
Canada USA Meeting Room Thermal Insulated Double Glass Door Aluminium Lift Sliding Door Chamber Door
Canada USA Meeting Room Thermal Insulated Double Glass Door Aluminium Lift Sliding Door Chamber Door
Canada USA Meeting Room Thermal Insulated Double Glass Door Aluminium Lift Sliding Door Chamber Door

Canada USA Meeting Room Thermal Insulated Double Glass Door Aluminium Lift Sliding Door Chamber Door

Send Inquiry

Product Description

Product Description
Thermal Insulated Double Glass Aluminium Lift Sliding Door

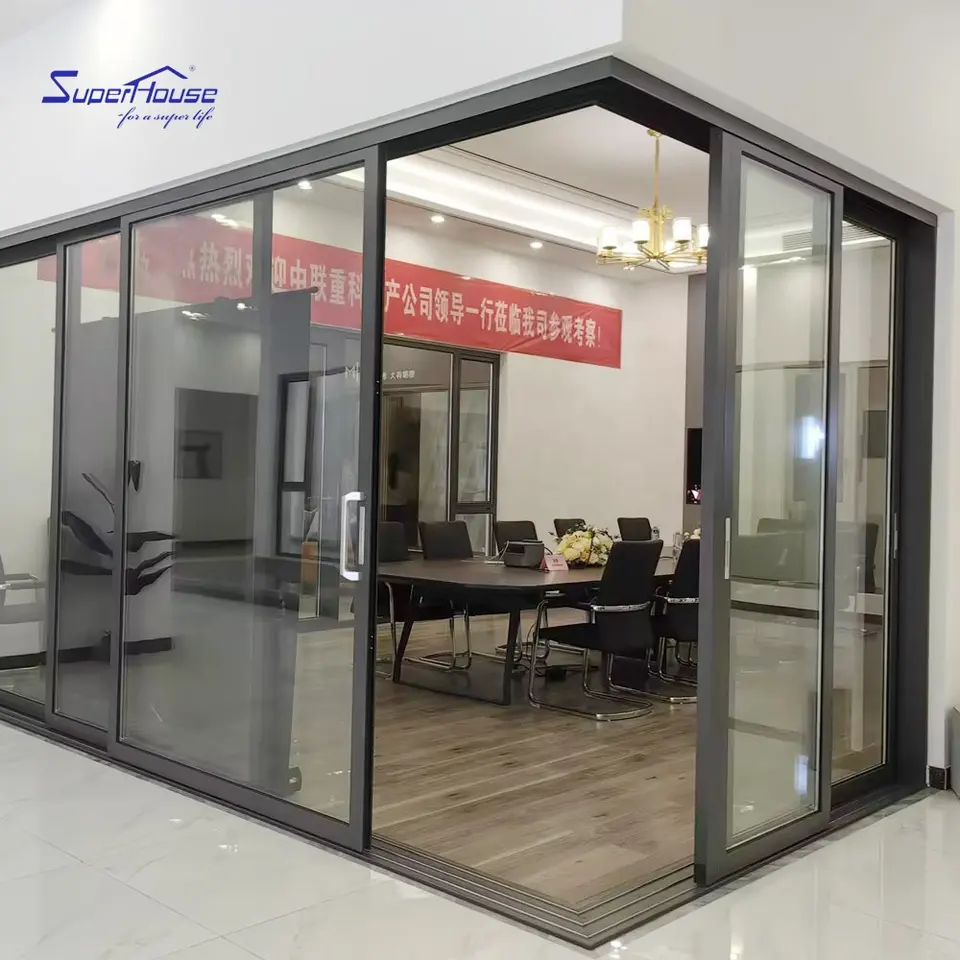

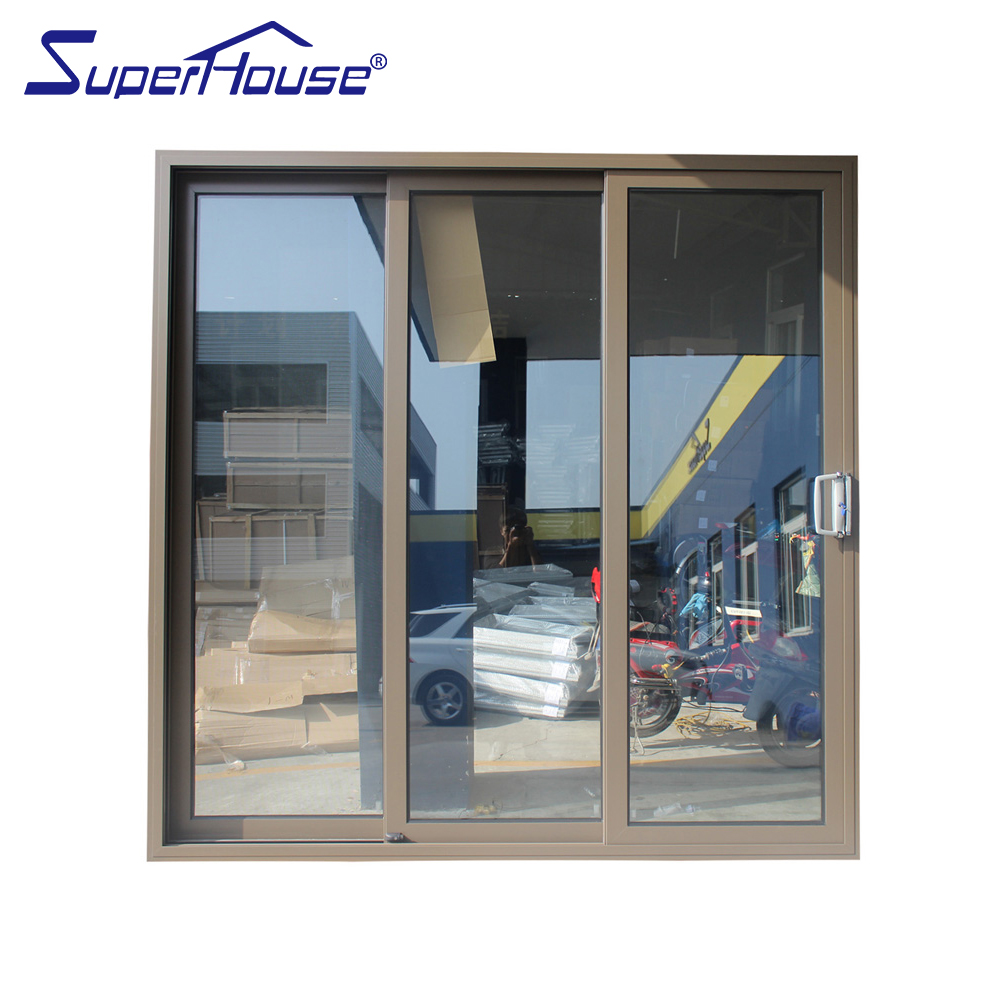

Canada USA Meeting Room Thermal Insulated Double Glass Door

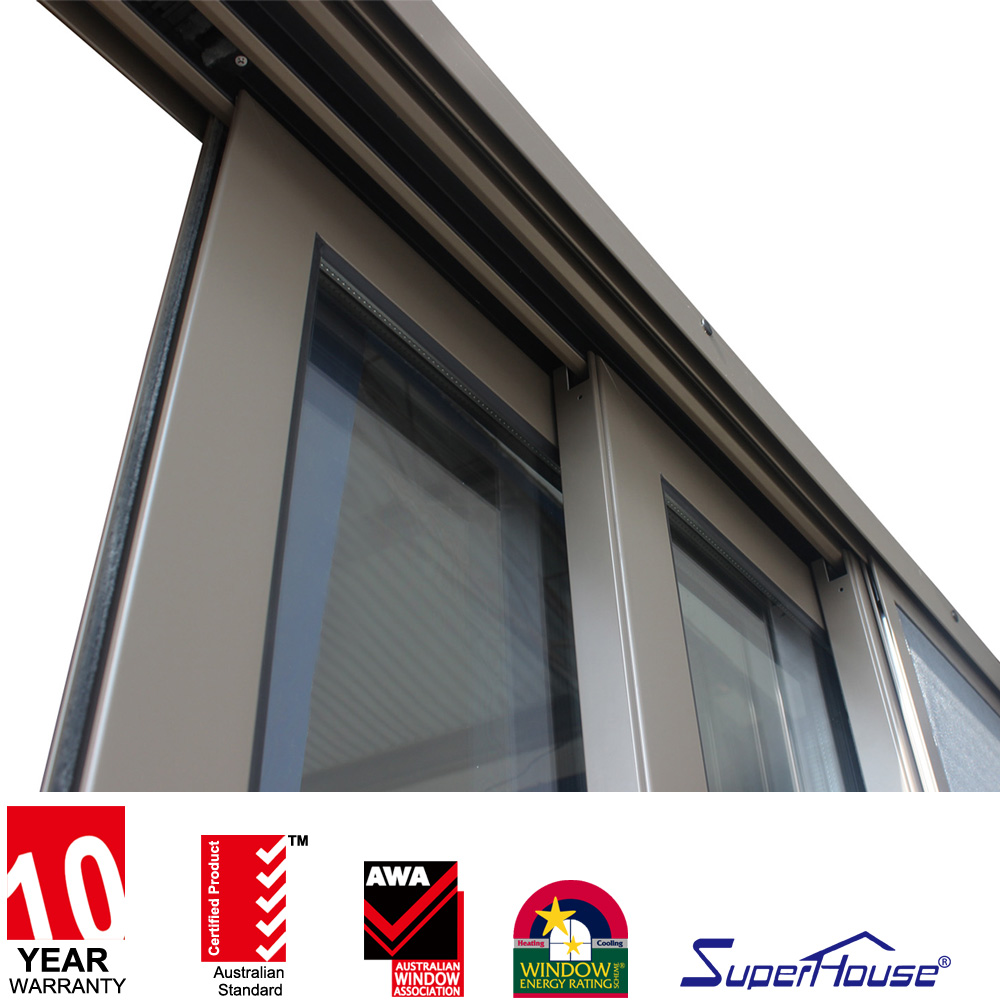

Aluminium Lift Sliding Door Detail 1

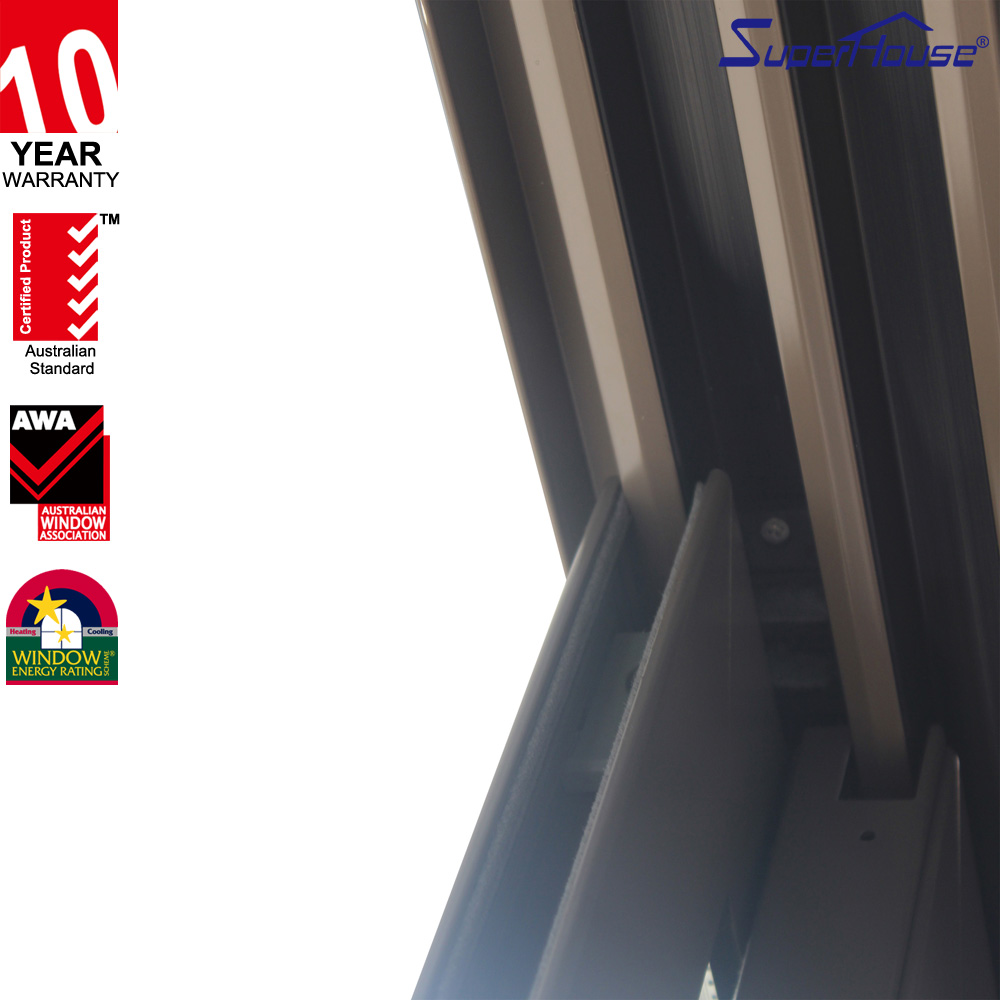

Aluminium Lift Sliding Door Detail 2

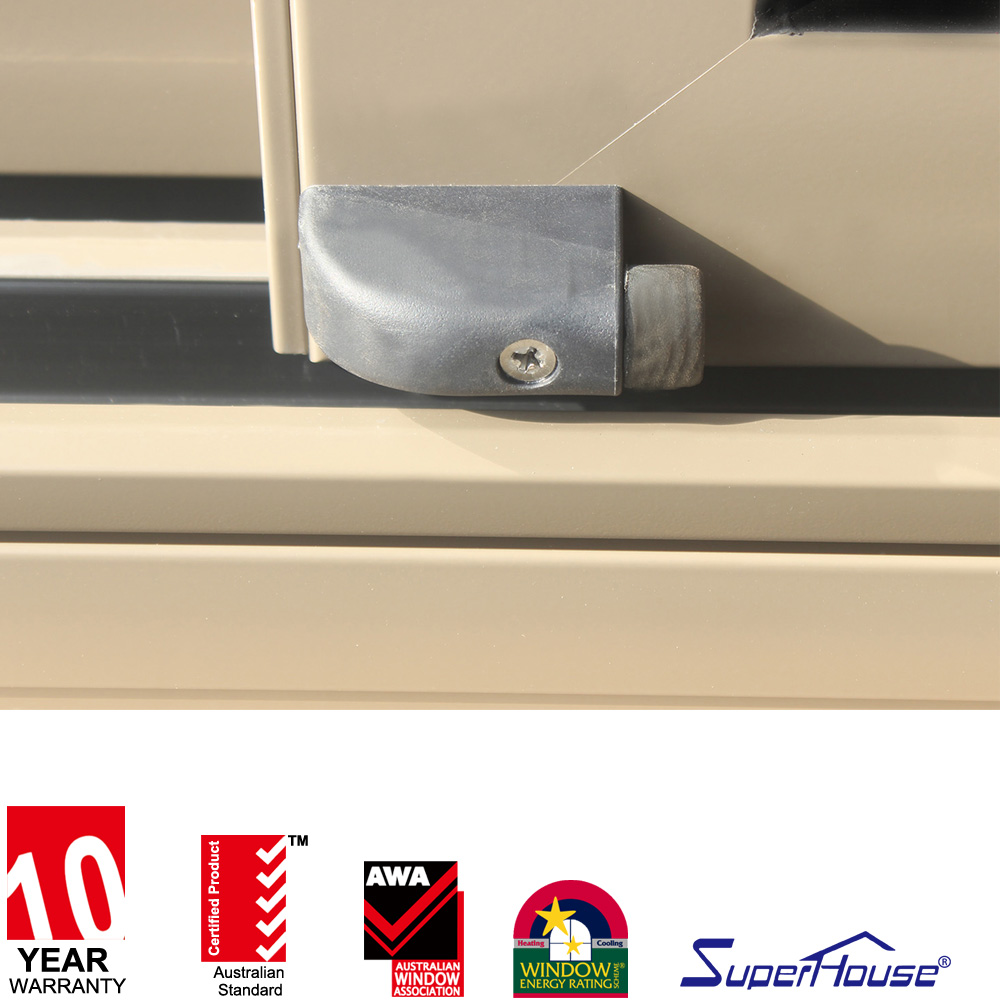

Aluminium Lift Sliding Door Detail 3
Key Features
  • Top hung ball bearing system providing smooth sliding operation.
  • High-performance weather seals for superior weatherproofing and acoustics.
  • Retractable flyscreen options available for interior or exterior installation.
  • Versatile panel configurations (220, 330, 321, 431, 550, 532, 660, 633, 752, 743, etc.).
  • Heavy-duty structural capability accommodating up to 3m height.
  • Glass thickness accommodation ranging from 6.38mm to 19mm.
  • Laboratory tested and certified to comply with AS2047 & CSA standards.
  • Acoustic insulation (up to max STC 39) and WERS energy-rated options.
Technical Drawing 1
Technical Drawing 2
Product Specifications
Name / Model Aluminium track 3 panel sliding closet doors lowes with Dade testing
Standard / Certificate Comply with AS2047
Glass Standard Comply with AS2208 & ANSI Z97.1
Structural Glazing Comply with AS1288
Profiles 6063-T5 high quality thermal / non-thermal break aluminium profiles; PVC/UPVC profiles
Glass Options Low-E, Frosted/Obscure, Tinted (Grey/Blue/Green); Single toughened (6, 8, 10, 12mm); Double toughened (5+12A+5, 6+12A+6mm); Triple glass (5+6A+5+6A+5mm); Laminated (6.38, 10.76, 10.38mm)
Hardware Australian Doric, German Siegenia/Roto, or Top-tier China Brands
Surface Finish Powder coated (meets AS 3715), Electrophoresis, Fluorocarbon, Anodizing, Wood grain
Color Options Customized (Matt black, White, Ultra silver, Clear anodized, Natural clean aluminium)
Mesh / Screen Stainless steel security mesh, Aluminium security mesh, Fiberglass flyscreen; Retractable, Fixed, or Sliding screens
Security Crimsafe mesh / Grille options available
Main Markets Australia, Canada, USA, New Zealand
Warranty & Experience 10 Years Guarantee Period | 10+ Years Manufacturing Experience
Application Residential & Commercial series, Modular houses, Steel structure houses
Wall Types Double brick, Brick veneer, Concrete, Wooden frame, Steel structure
Subframes Angles, Timber reveals, Sub-head, Sub-sills available
Standards & Certifications
  • Approved by Australian Window Association, SAI Global & TUV
  • Fabricated in accordance with AS2047 standards
  • Member of Window Energy Rating Scheme (WERS)
  • Glass compliant with AS2208 & ANSI Z97.1 standards
  • Complies with American NFRC and Miami Dade testing
Certification License 1
Certification License 2
Certification License 3
Project Gallery
Project Case Study 1
Project Case Study 2
Packaging & Protection Steps
Packaging Detail
Step 1
Wrap window corners with hard, thick corrugated board and tighten securely with protective film.
Step 2
Place items onto iron steel pallets capable of loading 2.0 Tons (approx. 10-15 door/window units per pallet).
Step 3
Secure all units to iron pallets using steel bars with screws. Wrap the entire pallet with protective film to prevent water and dust exposure.
Step 4
Load pallets into containers using forklifts, inserting air bags into pallet spaces to ensure 100% safe, unshakable transportation.
Popular Featured Products
Hot Sale Aluminium Sliding Doors
Frequently Asked Questions (FAQ)
Are you a trading company or a direct manufacturer?
We are a 100% verified real manufacturer certified by independent auditing organizations such as TUV and AWA (Australian Window Association).
Do your doors and windows meet AS2047 standards?
Yes, all of our window and door systems fully comply with Australian AS2047 standards. Additionally, our glass products meet AS2208, ANSI Z97.1, and UL standards.
What is your typical manufacturing lead time?
Manufacturing usually takes between 38 to 45 days upon receiving the deposit and final approval of shop drawings, as custom extrusion profiles require around 25 days for delivery.
Do you accept customized designs and sizes?
Yes, all products are tailored to order. We fully support custom designs, dimensions, profile colors, and hardware configurations based on customer choices.
What hardware options are available?
We offer high-end hardware systems including German brands (Siegenia/Roto), Australian Doric hardware, as well as top-grade domestic Chinese brands depending on project requirements.
How are the products packaged for ocean shipping?
Products are wrapped with protective film and thick corrugated board corners, mounted onto heavy-duty iron steel pallets, secured with steel bars, and padded with air bags during container loading to guarantee zero movement in transit.
