Engineered for commercial, residential, and industrial applications meeting international energy and structural standards.
In contemporary architectural engineering, the demand for expansive, uninterrupted spatial transitions has catalyzed a major paradigm shift toward multi-panel aluminum stacker doors. Unlike conventional two-panel sliding doors or bi-fold systems that intrude upon interior floor plans, stacker doors operate on a multi-track mechanism where multiple door sashes slide seamlessly behind one another. This configuration maximizes functional opening clear-widths (often reaching up to 75% to 80% of total frame span) while offering superior resistance against wind load, water ingress, and structural deflection.
Global commercial developers, residential architects, and facade engineering firms increasingly mandate low U-factor and low Solar Heat Gain Coefficient (SHGC) parameters. Aluminum stacker doors engineered with thermal break technology (incorporating continuous glass-filled polyamide PA66 structural strips) solve the historical challenge of metal thermal conductivity. Modern stacker systems combine high-strength extruded 6063-T6 aluminum alloys with multi-layer Insulated Glass Units (IGUs), forming an impermeable barrier against solar radiation in tropical zones and severe thermal loss in cold climate regions.
Engineered with 6063-T6 architectural grade aluminum extrusions providing high moment of inertia to resist extreme wind pressure up to 5000 Pa.
Polyamide thermal barrier breaks achieve total window system U-factors as low as 1.2 W/m²K, surpassing strict California Title 24 & EU standards.
Acoustic laminated glass configurations deliver STC ratings above 42 dB, effectively dampening high-frequency urban traffic sound emissions.
When specifying high-performance stacker doors for large-scale developments, procurement teams must evaluate precise material compositions, glass stack-ups, hardware load limits, and air-tightness seal topologies. The matrix below details the standardized engineering parameters governing our stacker door product line:
| Engineering Metric | Standard Configuration | High-Performance / Commercial Upgrade | Testing Standard / Certification |
|---|---|---|---|
| Aluminum Profile Alloy | 6063-T5 Architectural Extrusion | 6063-T6 Precision Structural Profile | GB/T 5237 / ASTM B221 |
| Profile Wall Thickness | 1.6 mm - 2.0 mm (Residential) | 2.5 mm - 3.0 mm (Commercial Heavy Duty) | BS EN 755 / AS/NZS 1866 |
| Thermal Barrier Strip | 14.8 mm Polyamide PA66 Strip | 24 mm - 34 mm Reinforced PA66GF25 | ISO 14001 / EN 14024 |
| Glass Construction | 5mm + 12Argon + 5mm Double Tempered | 6mm Low-E + 16Ar + 6mm Laminated SGP | NFRC Certified / AS1288 Safety Glazing |
| Hardware Carriage Systems | Heavy-Duty Nylon Rollers (150kg/panel) | SUS316 Stainless Steel Quad Wheels (400kg/panel) | 100,000 Cycle Fatigue Tested |
| Air Leakage Resistance | Level 4 (Q1 ≤ 1.5 m³/m·h) | Ultra-Sealed Sub-Sill Pressure Equalized | ASTM E283 / AS4420.2 |
| Water Penetration Pressure | 300 Pa Standard Threshold | 700 Pa Recessed Sub-Sill Drainage System | ASTM E331 / AS2047 High Rating |
Engineering Insight: Sub-sill drainage design is critical for high-rise balcony applications. Our proprietary stepped track geometry utilizes dynamic check-valves that prevent wind-driven rainwater backflow under pressures up to 700 Pa, ensuring total dry-state structural performance during severe tropical storms and coastal hurricanes.
Deploying fenestration products across international borders requires absolute compliance with regional building energy performance directives, wind load metrics, and impact resistance codes. We maintain an exhaustive portfolio of localized certifications:
Our stacker doors designated for the North American market strictly conform to NFRC (National Fenestration Rating Council) protocols for U-factor, SHGC, and Visible Transmittance (VT). For coastal sunbelt regions such as Florida, Texas, and South Carolina, specialized multi-track stacker systems incorporate high-tensile Florida Hurricane Impact NOA (Notice of Acceptance) standards with SGP (SentryGlas®) laminated interlayers, capable of withstanding large missile impacts (ASTM E1886/E1996). Furthermore, our thermal break doors are fully verified to satisfy California Title 24 Building Energy Efficiency Standards.
Australia’s harsh solar radiation and coastal winds necessitate stringent testing under AS2047 (Windows and External Glazed Doors in Buildings) and AS1288 (Glass in Buildings - Selection and Installation). Our doors undergo rigorous physical structural pressure, air infiltration, water penetration, and ultimate limit state (ULS) strength evaluations. Rated through WERS (Window Energy Rating Scheme), our stacker series provides optimal star ratings for both cooling-dominated northern Australia and heating-dominated southern zones.
Conforming to the CE Mark (EN 14351-1), our products integrate advanced multi-point hardware locks, dual EPDM gasket sealing, and non-toxic powder coating finishes complying with QUALICOAT European standard specifications for surface durability and anti-corrosion protection against maritime salt spray.
Zhejiang Shieldoors Security Technology Co., Ltd. was established in 2016 and is located in an expansive 45,000 m² production base. Building on 10 years of industry leadership and 6 years of international trade experience, the company generates an annual export revenue reaching USD 42,000,000.
Our commitment to excellence is maintained through rigorous ISO9001-certified quality control and third-party product testing methods, including CE, UL fire-rated, and hurricane-impact certifications. A dedicated quality inspection team of 78 QC specialists ensures that every entry door and stacker system meets international safety standards. Working with a robust ecosystem of 1,400 supply chain partners, our trade background covers direct export, project bidding, and global supply chain integration, mainly targeting key markets in North America, Australia, and Southeast Asia.
Innovation is at the heart of our operations. Supported by 350 skilled R&D engineers, we launched 450 new product designs last year. We serve major real estate developers, architectural firms, and building material retail chains by offering tailored customization options ranging from soundproofing and thermal insulation features to smart lock integration and custom panel finishes.
Our automated production line integrates seamless quality control checks at eight key manufacturing nodes, guaranteeing millimeter-level precision for all customized aluminum stacker door orders:
Our facility houses industry-leading CNC machinery, automated double-head cutting saws, and automated glass washing lines to maintain high yields and low lead times:
Different commercial and residential spaces demand unique physical layout considerations. Aluminum stacker doors offer high versatility across a multitude of architectural environments:
Integrated with corrosion-resistant 316 stainless steel hardware and reflective double-tinted Low-E glass, our stacker doors withstand salt air corrosion while maximizing dynamic sea views.
Heavy-duty multi-track stacker systems convert indoor corporate conference rooms into open-air event spaces, supported by zero-threshold flush tracks that comply with ADA accessibility standards.

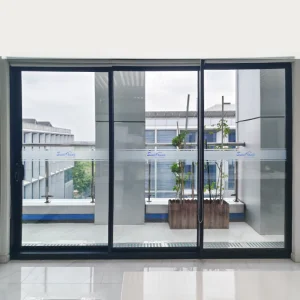

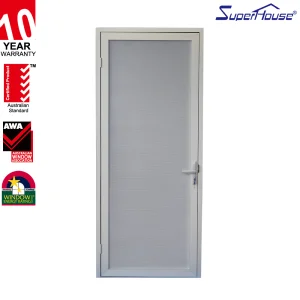

Ultra-slim interlocking sightlines (as narrow as 20mm) deliver minimal visual obstruction, complemented by integrated high-strength stainless steel security mesh for insect and intrusion protection.
As smart building automation and zero-carbon energy targets reshape global construction, Zhejiang Shieldoors Security Technology Co., Ltd. is pioneering next-generation fenestration technologies:
Expert engineering answers regarding stacker door specification, logistics, structural limits, and global order fulfillment.
